JM161 Polypropylene fiber stretching machine

Share

We are professional manufacturer engaged in multifilament chemical fiber spinning machinery with good experience of 30 years. JM161 Polypropylene fiber stretching machine is widely used in the fields of Geo-Textile, Failter cloth, Lifting Belts, Cables, FIBC jumbo bags, wig, braiding/knitting products, concrete fiber, sewing thread, rope, belt etc.


1. Product  Description

JM161 Polypropylene fiber stretching machine

JM161 Polypropylene fiber stretching machine

1) Low power consumption, 1-1.2kw/1kg yarn

2) Fast asscmble and trainning, professional engineer 10-15days

3) Reasonable design to make high tenacity yarn 7-7.5g/d

4) Easy operate, PLC control + touch screen

5) It require the building roof 7m

6) The pp multifilament is used for webbing, rope, filter, sewing thread, concrete fibre etc


2. Technical Process

fdy yarn manufacturing process

Chips→ extruder→ extruding head →melt pipe with static mixer→ spinning beam with oil heating →quenching delay→ quenching chamber → oiling system → feeding roller →migration nozzle→ four pairs of hot godet rollers→ inter lacing jets→ take-up winder →final product

JM161 Polypropylene fiber stretching machine


3. Detailed  Images

JM161 Polypropylene fiber stretching machine

Extruder Part of JM161 Polypropylene fiber stretching machine:

1. Automatic hopper loader

2. Extruder head (with measuring head)

3. Spinning beam

4. Metering pump

5. Spinnneret + packs


JM161 Polypropylene fiber stretching machine

Air Cooling Blower of JM161 Polypropylene fiber stretching machine:

1. Blowing area:W 1250mm*H1800mm

2. With filter

3. With air fan,frequency control

4. It has several layers

5. It can be opened from the side. It's very convenient


JM161 Polypropylene fiber stretching machine

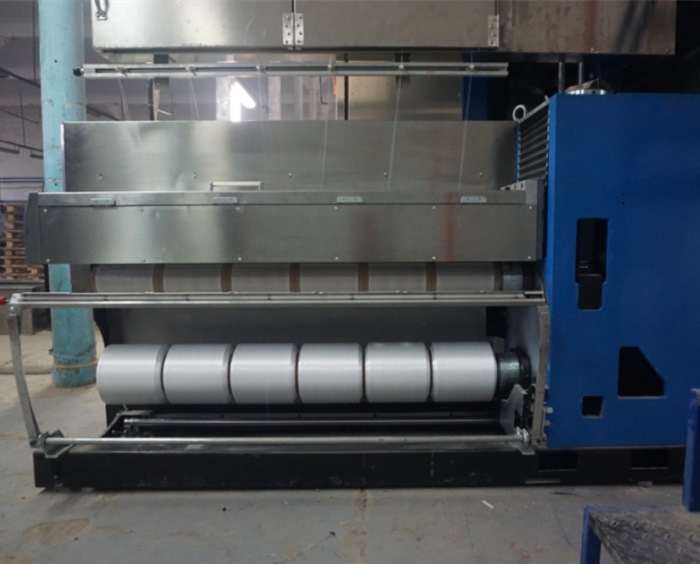

High Speed Winding Machine of JM161 Polypropylene fiber stretching machine:

1. 6 ends

2. 1600-2600m/min

3. Paper bobbin size:Φ110×Φ125×230mm

4. Max spool dia: Φ420mm , Traverse mode

5. Famous winder brand


4. Final Products

Our equipment is widely used in the industrial  fields of braiding/knitting products , construction reinforce fiber , sewing thread , rope , fishing net and narrow fabrivc etc.

JM161 Polypropylene fiber stretching machine


5. Why Choose Us

JM161 Polypropylene fiber stretching machine

Pre-Sales Service

* Inquiry and consulting support .

* Sample testing support .

* View our Factory .

* With online device , our team is 24hr at your service .


After-Sales Service

* Come engineer help set up machine , take 12-15 days for assemble and trainning . 3-4 days for set up , 5-6 days for training .

* The customer should prepare 3-5 workers for learn and operate the machne .

* With online device , our team is 24hr at your service .


6. Our Company

JM161 Polypropylene fiber stretching machine

Taian Jiamei Machinery Technology Co., Ltd is professional manufacturer engaged in multifilament chemical fiber spinning machinery with good experience of 30 years. Our main products include FDY、POY、BCF、ATY multifilament spinning line . Our equipment is widely used in the industrial fields of braiding/knitting products , construction reinforce fiber , sewing thread , rope , fishing net and narrow fabric etc .


JIAMEI  MACHINERY is very strict for quality control and provide thoughtful  after-sales service  help customer produce yarn with super quality . we have very strong after-sales team could provide engineer for machine set up ,do the old equipment renovation and send worker come for a long time stay .


Recently years our products have been export to Spain , Romania , India , Thailand, Russia , Ukraine , Morocco , Argentina, Indonesia, Mexico, Philippines etc more than 50 countries , good machine quality have attract customer repeat order again and again.


We also  help  customer  with  A-Z solutions deal with related products like yarn twister machine , reinforce polypropylene fibre production line , rope production line and webbing production line , etc.


Jiamei Machinery wish a long term business cooperation with customer via excellent machine quality and thoughtful service .
