  • FDY PP multifilament yarn spinning machine

PP Yarn Making Machine | FDY PP Multifilament Spinning Line

Share

We are professional manufacturer engaged in multifilament chemical fiber spinning machinery with good experience of 30 years. Our main products include FDY、POY、BCF、ATY multifilament spinning line. FDY PP multifilament yarn spinning machine is widely used in the industrial fields of FIBC jumbo bags, wig, concrete fiber, rope, sewing thread etc

PP FDY Multifilament Spinning Machine


A PP FDY multifilament spinning machine processes polypropylene (PP) chips into fully drawn, continuous multifilament yarn through melt extrusion, filament cooling, drawing and heat setting, followed by winding. The finished PP FDY yarn can be used for webbing, industrial sewing thread, ropes, fishing nets and other technical textile applications, depending on the yarn specifications and end-use requirements. The spinning line can be configured according to the required denier, filament count, production capacity and final yarn application.




1. Prodct Description

Professional PP Yarn Making Machine for FDY Multifilament Production

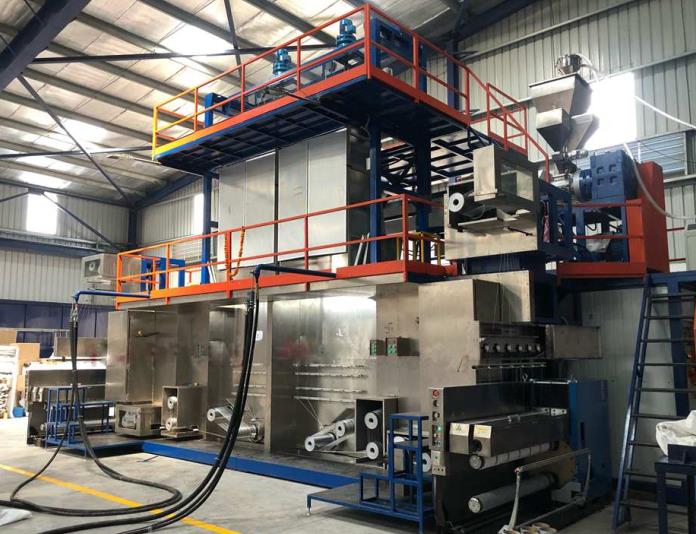

FDY PP multifilament yarn spinning machine


FDY PP multifilament yarn spinning machine

1) Low power consumption, 1-1.2kw/1kg yarn

2) Fast asscmble and trainning, professional engineer 10-15days

3) Reasonable design to make high tenacity yarn 7-7.5g/d

4) Easy operate, PLC control + touch screen

5) It require the building roof 7m

6) Electric parts from famous JAPAN brand

7) The pp multifilament is used for webbing, rope, filter, sewing thread, concrete fibre etc


2. Technical Data:



ITEMMODEL
DENIERJM2121JM281JM261JM241JM181JM161JM141JM131JM121
NO.OF ENDS/POS75-300300-4500
SPINNERET FILAMENT NO.12ENDS/2POS18ENDS/2POS6ENDS/2POS4ENDS/2POS8ENDS/1POS6ENDS/1POS4ENDS/1POS3ENDS/1POS2ENDS/1POS
WINDING SPEED12-30F120F,144F,160F OR AS REQUEST(MORE SOFT MORE FILAMENT NO.)
OUTPUT KGS/24HR1800-2500M/MIN
BOBBIN DIMESION(MM)768(BASED ON 100D)4608(BASED ON 900D)3456(BASED ON 900D)2304(BASED ON 900D)2304(BASED ON 900D)1782(BASED ON 900D)1152(BASED ON 900D)864(BASED ON 900D)574(BASED ON 900D)
INSTALL CAPACITY (KW)

Φ108*Φ94*Φ100/

Φ110*Φ124*Φ100

Φ108*Φ94*Φ115/

Φ110*Φ124*Φ150

Φ125*Φ110*200

(or 230)

Φ108*Φ94*Φ230Φ108*Φ94*Φ115

Φ125*Φ110*200

(or 230)

Φ108*Φ94*Φ230Φ89*Φ75*Φ200Φ89*Φ75*Φ300
DIA.OF SCREW(MM)400380335300200180160140120



3. Production Process:

Technical process of FDY multifilament yarn spinning machine:
Chips→ extruder→ extruding head →melt pipe with static mixer→ spinning beam with oil heating →quenching delay→ quenching chamber → oiling system → feeding roller →migration nozzle→ four pairs of hot godet rollers→ inter lacing jets→ take-up winder →final product

FDY PP multifilament yarn spinning machine

4. Machine Parts:

FDY PP multifilament yarn spinning machine

FDY PP multifilament yarn spinning machine

Extruder Part of FDY PP multifilament yarn spinning machine:

1. Automatic hopper loader

2. Extruder head (with measuring head)

3. Spinning beam

4. Metering pump

5. Spinneret + packs

FDY PP multifilament yarn spinning machine

FDY PP multifilament yarn spinning machine

FDY PP multifilament yarn spinning machine

Air Cooling Blower of FDY PP multifilament yarn spinning machine:

1. Blowing area:W 1250mm*H1800mm

2. With filter

3. With air fan,frequency control

4. It has several layers

5. It can be opened from the side. It's very convenient


FDY PP multifilament yarn spinning machine

High Speed Winding Machine of PP yarn making machine:

1. 3 ends, 4 ends, 6 ends, 8 ends, 12 ends

2. 1600-2600m/min

3. Paper bobbin size:Φ110×Φ125×230mm

4. Max spool dia: Φ420mm , Traverse mode

5. Famous winder brand

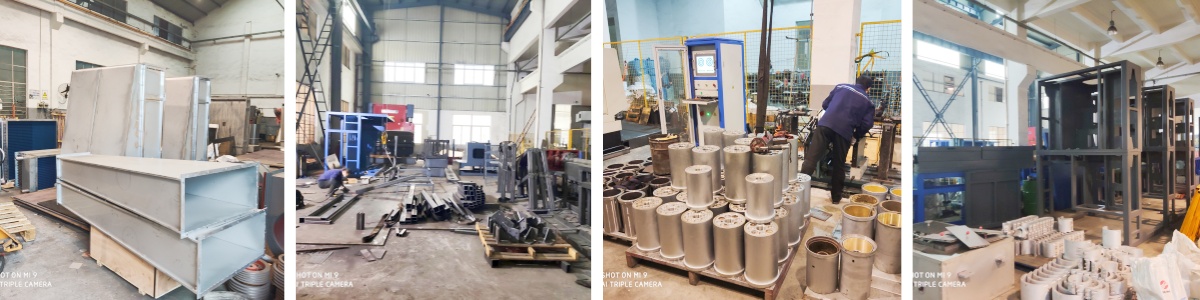

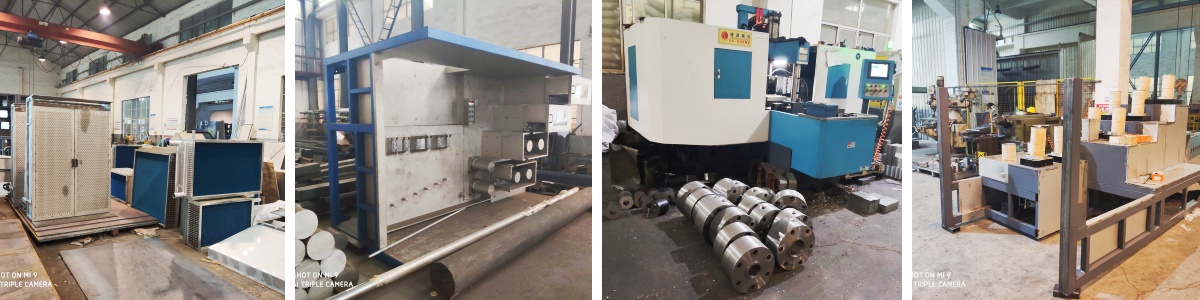

5. Our Factory

PP Yarn Making Machine | FDY PP Multifilament Spinning Line

PP Yarn Making Machine | FDY PP Multifilament Spinning Line

6. Packing & Delivery

FDY PP multifilament yarn spinning machine


7. Installation & Training

FDY PP multifilament yarn spinning machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* With online device, our team is 24hr at your service.


After-Sales Service

* Come engineer help set up machine, take 12-15 days for assemble and trainning. 3-4 days for set up, 5-6 days for training.

* The customer should prepare 3-5 workers for learn and operate the machine.

* With online device, our team is 24hr at your service.


Frequently Asked Questions About PP FDY Multifilament Spinning Machines

1. What raw materials can a PP FDY multifilament spinning machine process?

A PP FDY multifilament spinning machine is designed to process polypropylene (PP) chips into continuous multifilament yarn. The raw material should meet the requirements of the selected spinning process and target yarn specifications. Please confirm the suitable PP grade with our technical team before ordering.

2. What types of yarn can a PP FDY spinning machine produce?

A PP FDY spinning line can be configured to produce polypropylene multifilament yarn for applications such as webbing, industrial sewing thread, ropes, fishing nets and concrete reinforcement fiber. The suitable configuration depends on the required yarn denier, filament count, yarn properties and end application.

3. What yarn denier and filament count can the machine produce?

The available yarn denier and filament count depend on the machine model, spinneret design, spinning positions and process configuration. Please provide your target yarn specifications so that we can confirm a suitable machine configuration for your production requirements.

4. What determines the production capacity of a PP FDY spinning line?

The production capacity of a PP FDY spinning line depends on factors such as yarn denier, number of spinning positions, winding speed and production configuration. For an accurate capacity estimate, the output should be evaluated against the target yarn specification and stated over a defined period, such as kg/24 hours.

5. How does a PP FDY spinning machine produce fully drawn yarn?

The production process generally includes PP chip melting, melt extrusion, filament formation, cooling, drawing, heat setting and winding. Drawing and heat setting are integrated into the FDY production process to develop the required yarn properties. Process conditions must be adjusted according to the target yarn specification.

6. How can yarn strength and quality be controlled during production?

Yarn strength and quality are affected by raw material consistency, melt processing conditions, metering stability, filament cooling, drawing ratio, godet temperature and winding tension. Proper process control and regular monitoring help maintain consistent yarn properties. The final results should be verified through yarn testing under the specified production conditions.

7. What information is needed to obtain a quotation for a PP FDY spinning machine?

To recommend a suitable PP FDY spinning line, please provide your raw material, target yarn denier, filament count, required daily production capacity and intended yarn application. Information about your factory power supply and installation location is also helpful. Based on these requirements, we can discuss the suitable machine model, configuration and quotation.


Final Products/Application:

Our equipment is widely used in the industrial fields of braiding/knitting products , construction reinforce fiber , sewing thread , rope , fishing net and narrow fabrivc etc.

FDY PP multifilament yarn spinning machine
