PP/PET ATY air texturing yarn machine

Share


1. Product Description

After drawing, the tows of FDY filaments such as nylon, polyester and polypropylene fibers are blown under the action of high-speed airflow in the nozzle, fluffy into arcs and rings, and intertwined into deformed filaments. ATY machine adopts different deformation processes to make its product air textured yarn (ATY) have wool-like, cotton-like, linen-like or silk-like appearance and feel.

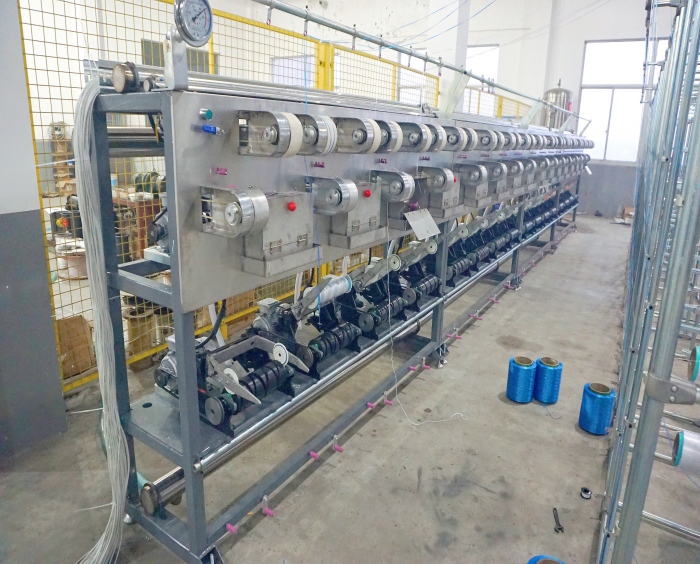

PP/PET ATY air texturing yarn machine


2. Technical Data

Spinnable Yarn Density30-600d
Spinnable Fiber MaterialPolypropylene/Polyester/Nylon
Spinning Package430*250
Mechanical Speed150-1000m/min(Process speed depends on process parameters, nozzles and raw filament quality.)
Spindle Number24spindle/section - 288spindle/section
Number Of Winding Layers3layers
Section Distance1440mm
Winding Diameter250mm
Winding ShapeBipyramid or rectangular, angle adjustment70,75,80,90
Transverse Length195-250mm
Crossing AngleAdjustable10-45
Chuck Sizeφ69.2 φ57.15
Feeding Roller3pics/spindle
Sensor3pics/spindle
Yarn Cutter2pics/spindle
Creel Form4-angle fixed creel with 4 feeding positions per spindle
Total Power80KW
Machine dimension(L*W*H)19943*10000*4100(288spindle, including creel width)


3. Yarn Processing

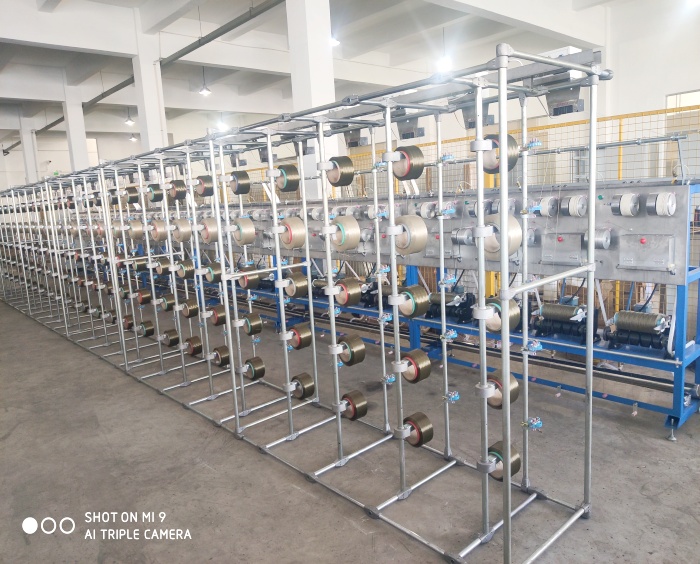

PP/PET ATY air texturing yarn machine

When the filament enters the nozzle at low overfeed rate, the running direction of the hot gas flows along the tow to disperse it. The tow is fixed under the effect of deformation and heat setting in the nozzle. The design of the nozzle should reduce the gas consumption and improve the intertwining effect. The Y type design can make the yarn knot stable and the length of the yarn is consistent. The jet deformed wire is not a yarn with loose ends of the fiber, but an irregular loop and a twisted filament produced by a mechanical method. The filament is formed by the filament winding and heat treatment of its adjacent filament.


4. Machine Sketch

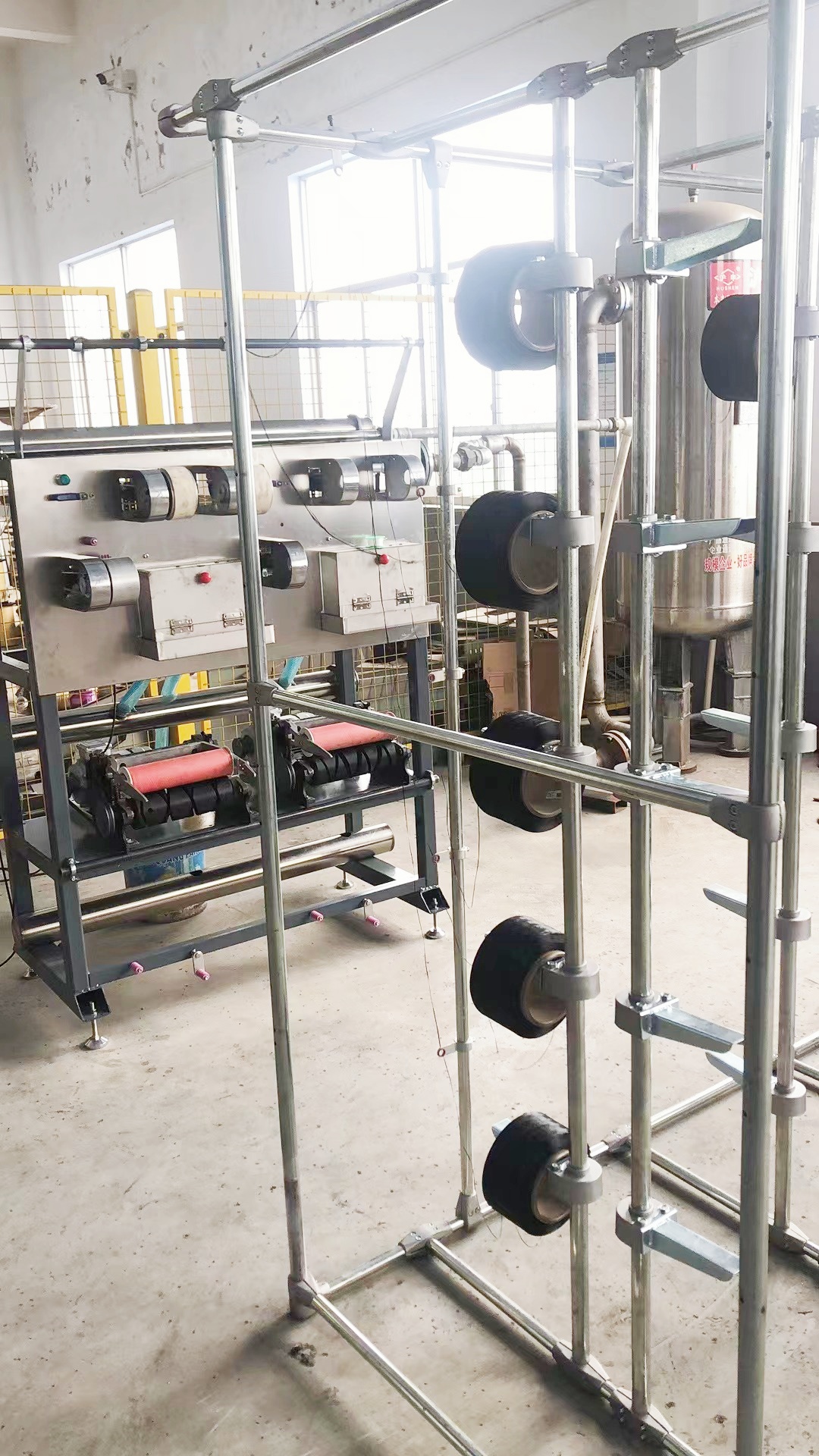

PP/PET ATY air texturing yarn machine


5. Final Products:

ATY yarn has wool-like, linen-like and cotton-like appearance and feel, and is widely used in clothing, home decoration, car seats, umbrellas, bags, carpets, wall cloth and other textile industries or industrial puffing and dipping products.

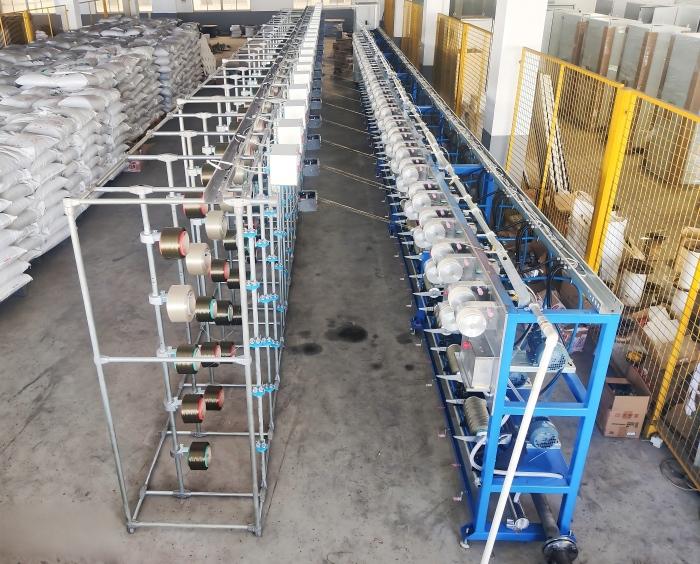

PP/PET ATY yarn airjet texturing machine


6. Machine Details

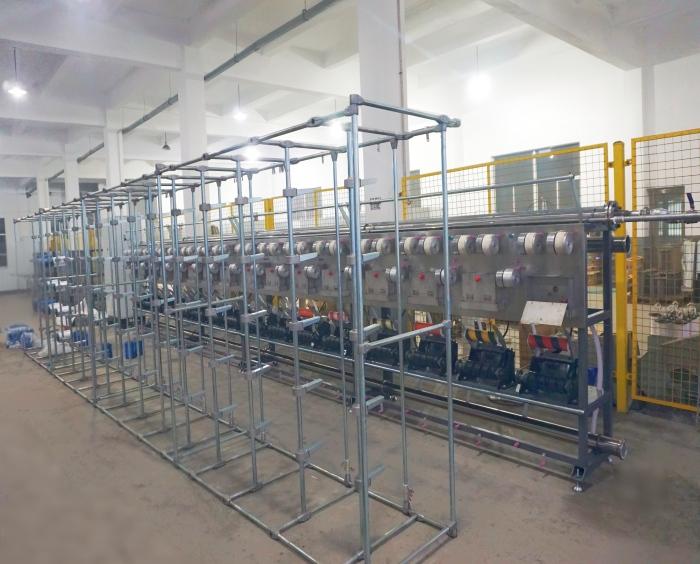

PP/PET ATY air texturing yarn machine


7. Packing & Delivery

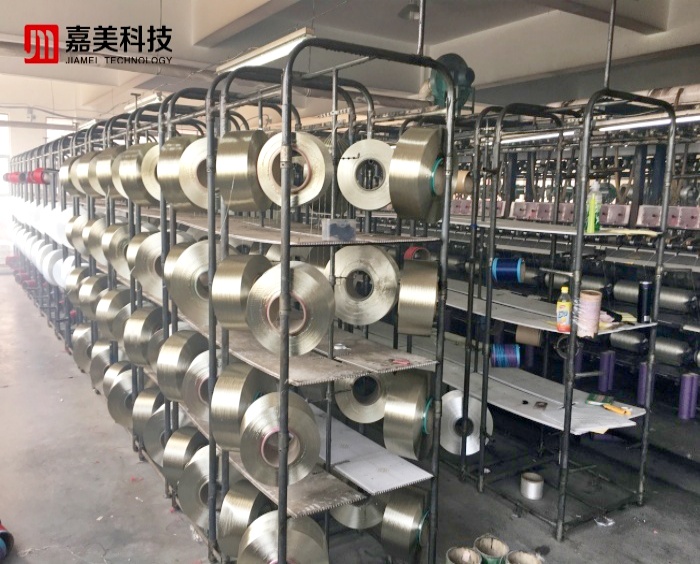

PP/PET ATY yarn airjet texturing machine
