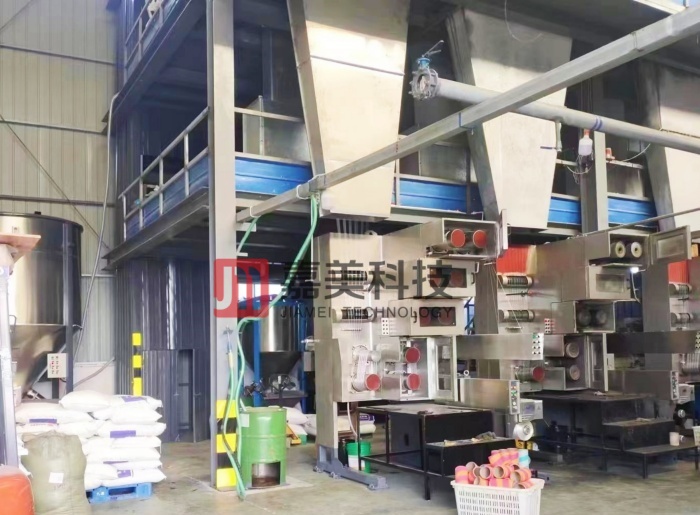

fdy polypropylene yarn chemical fiber spinning drawing machine

fdy polypropylene yarn chemical fiber spinning drawing machine polymer fibers extrusion drawing line

<img width="420" height="280" _url="

" class="edui-faked-video" src="https://www.jmfibermachine.com/public/js/ueditor/themes/default/images/spacer.gif" style="background:url(https://www.jmfibermachine.com/public/js/ueditor/themes/default/images/videologo.gif) no-repeat center center; border:1px solid gray;" />

Polypropylene, polyester, nylon, spandex, and other chemical fiber complete production line

The main technical parameters of polypropylene high strength FDY machine

Chemical fiber spinning pp material withl spinning speed : 1200 ~ 2000mm

Polypropylene high-strength FDY machinery each spinning head number: 2,4,6,8

Polypropylene high strength FDY mechanical fineness: 180D ~ 2100D

Polypropylene high-strength FDY mechanical screw diameter: Φ30mm ~ Φ120mm

Polypropylene high strength FDY mechanical draft roller size: Φ190 × 330mm or Φ180 × 280mm

Polypropylene high strength FDY mechanical winding speed: 1500 ~ 3000m / min

Polypropylene high strength FDY machine Applicable winding machine

Polypropylene high-strength FDY machinery main features:

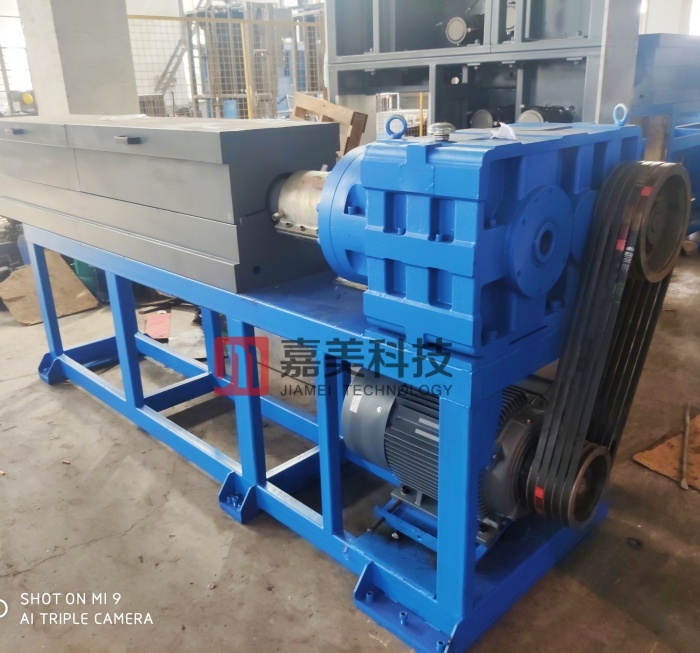

lengthened screw extruder, AC frequency control

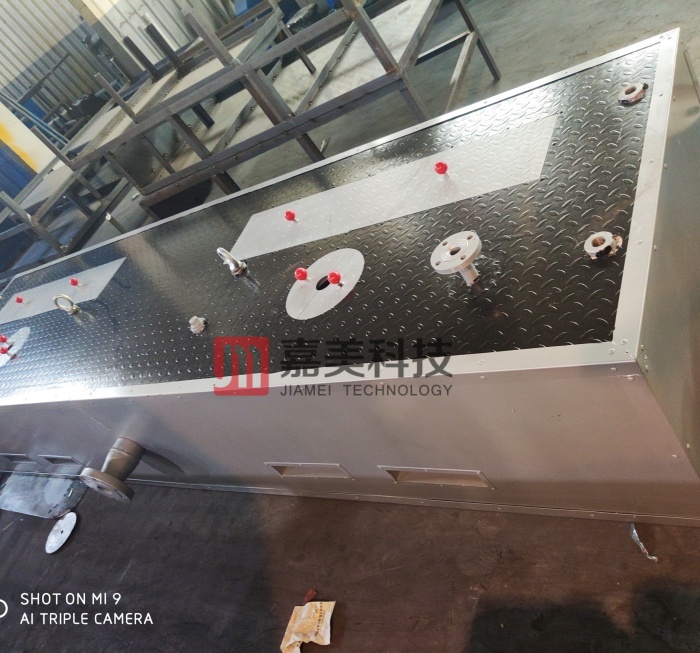

The new spinning machine and mixed homogeneous melt line

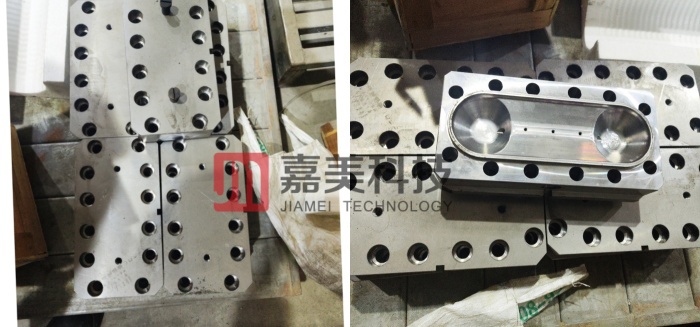

with large plate spinneret, round or rectangular top self-sealing components

The use of accurate measurement of the planetary gear pump and put the bit extension fast drive rod

with uniform and stable side of the blowing device, large flow sprinkler oil system

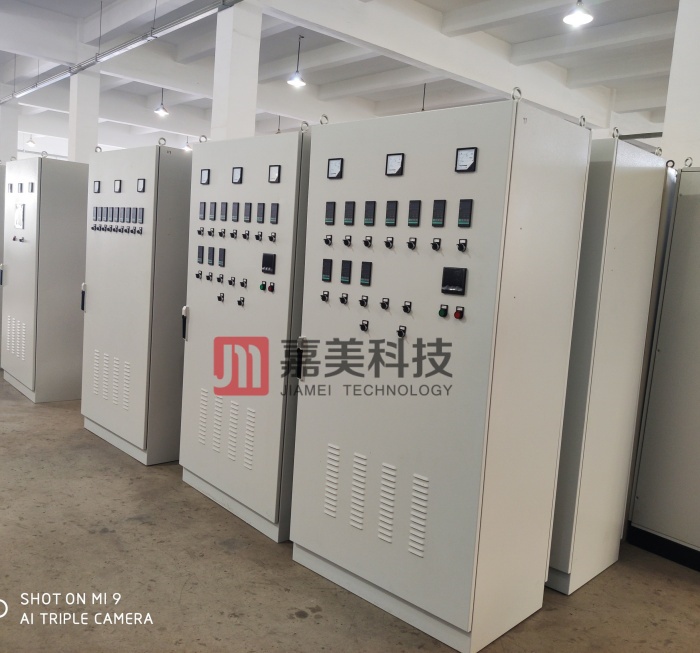

use of environmentally friendly energy-saving medium electric heating system, import smart instrument control

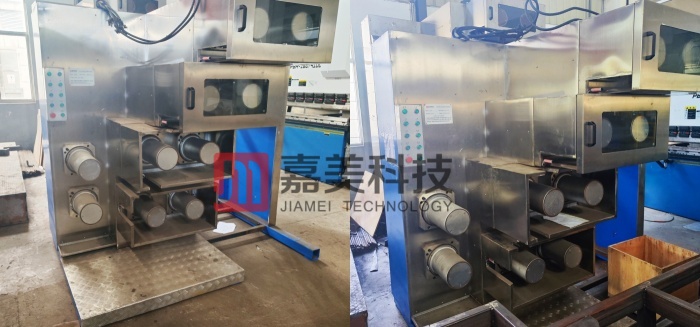

using 3 ~ 5 drafting roller drafting and heat setting, the new final network device

using domestic automatic switch winding machine

installation of the edge of the switch can be used to produce renewable raw materials Pu thick filament

high strength wire strength warranty at 7 g / d or more

Polypropylene high strength FDY machinery, the  spun  polypropylene    screw  extruder,  equipped  with  large  area  of  the  melt  filter  and    with  efficient  static  mixer  and  spinning  beam.  bottom  round-shaped  or  tops  rectangle-shaped  spinning  components,  lateral  blow  and  oiling  system,  heating  roll  and  switch  automatic  winding  machine.
