FDY PP Spinning Machine for Multifilament Yarn

High-Speed FDY PP Spinning Machine for Multifilament Yarn

Our PP FDY spinning machine is engineered for high-efficiency production of polypropylene full-drawn yarn (FDY) in various specifications. Whether you need fine denier multifilament yarn for textiles, durable micro-fibers for reinforced cement and concrete applications, or pp webbing and sewing thread, our integrated production line delivers consistent quality, high tenacity.

Featuring precision metering pumps,  and high-speed godets, this polypropylene FDY production line supports output up to 500-4500 kgs/hr with low energy consumption. design allows customization for making it the ideal solution for diversified fiber manufacturers.

1.High tenacity fdy pp yarn spinning machine including following componenets:

fdy pp yarn automatic hopper loader

multifilament masterbatch injection machine

pp yarn screw extruder

cf yarn pre-filter (selected by user)

meting Spinning box and components

pp yarn metering pump and transmission

side blowing, chiller unit and passageway

drawing godet hot rollert

take winder frame with oil tanker loading device

intermingle air jet device

automatic winding machine

electric control system

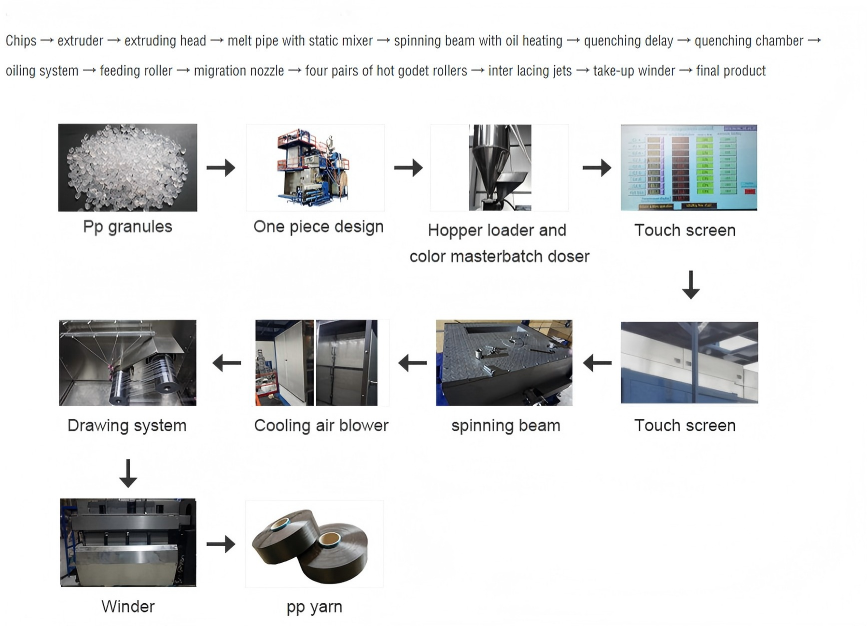

2.Technical process:

FDY PP Yarn Spinning Machine

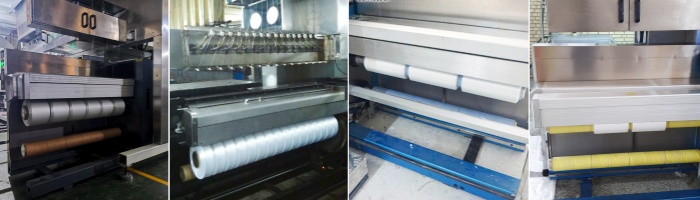

Spinning Machine Take Up Winder

6,8,10,12,14ends can be choose

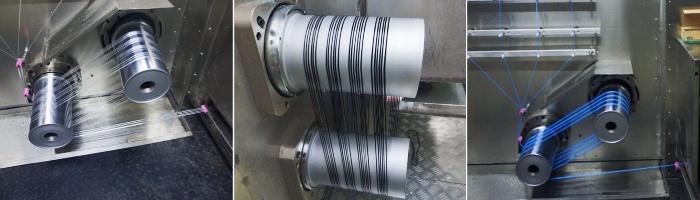

Spinning Machine Hot Godet

Control System

 - Our pp fdy spinning machines are equipped with PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) systems for precise control of temperature, speed, and tension.

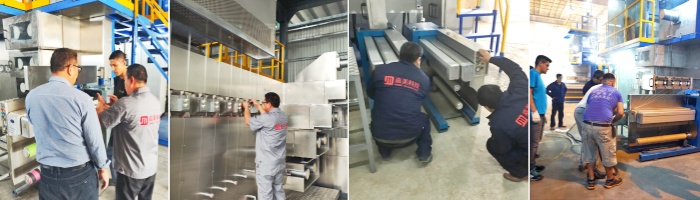

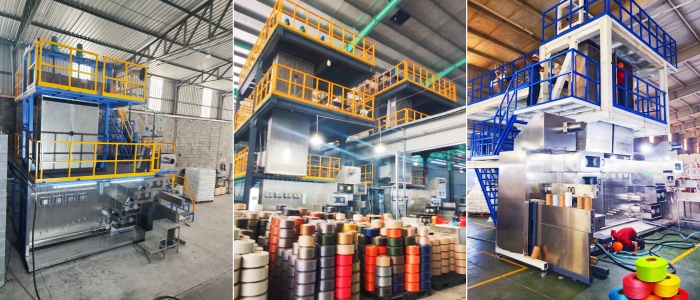

Customer Factory Installation

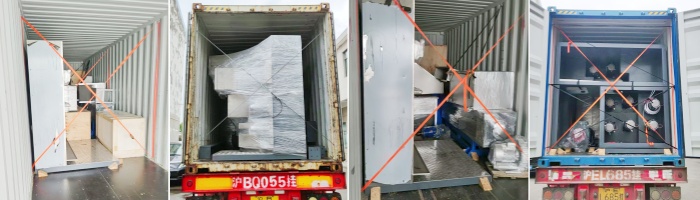

Packaging and Delivery

Trusted by clients worldwide, Jiamei Machinery Technology provides end-to-end support—from machine configuration and installation to after-sales service—ensuring your PP spinning and drawing line runs at peak performance.

Explore our tailored solutions for:

• PP FDY multifilament spinning machine for rope , sewing thread

• Concrete reinforcement polypropylene fiber production line

• PP Webbing spinning for industrial use

Request a quote today and transform your polypropylene fiber manufacturing capability!

JIAMEI polypropylene fdy spinning machine used for make pp webbing,wig hair,rope,fire hose,sewing thread,net,concrete fiber etc.
